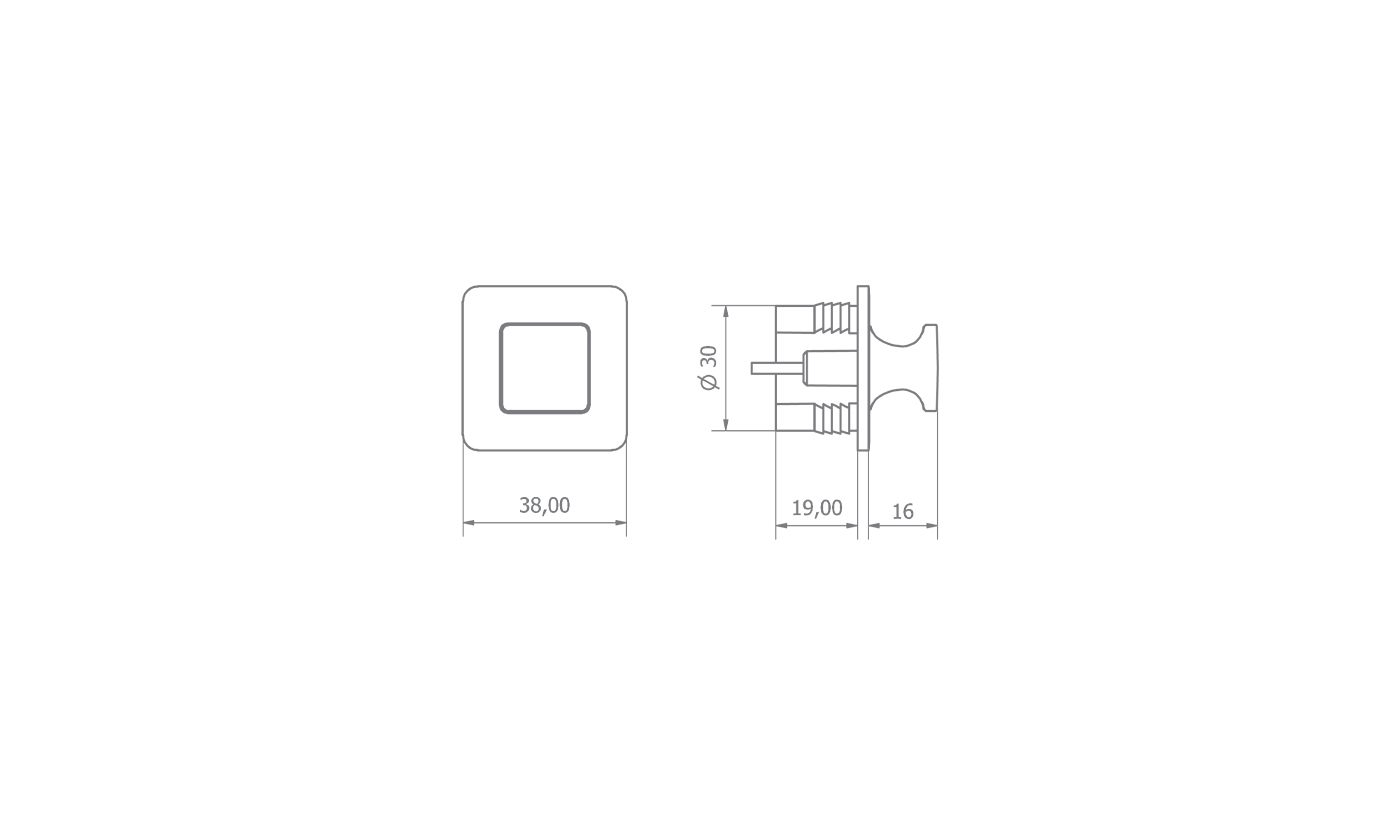

Features: suitable for door thickness from 14 to 18 mm. Can be adjusted to be used on door thickness over 18 mm.

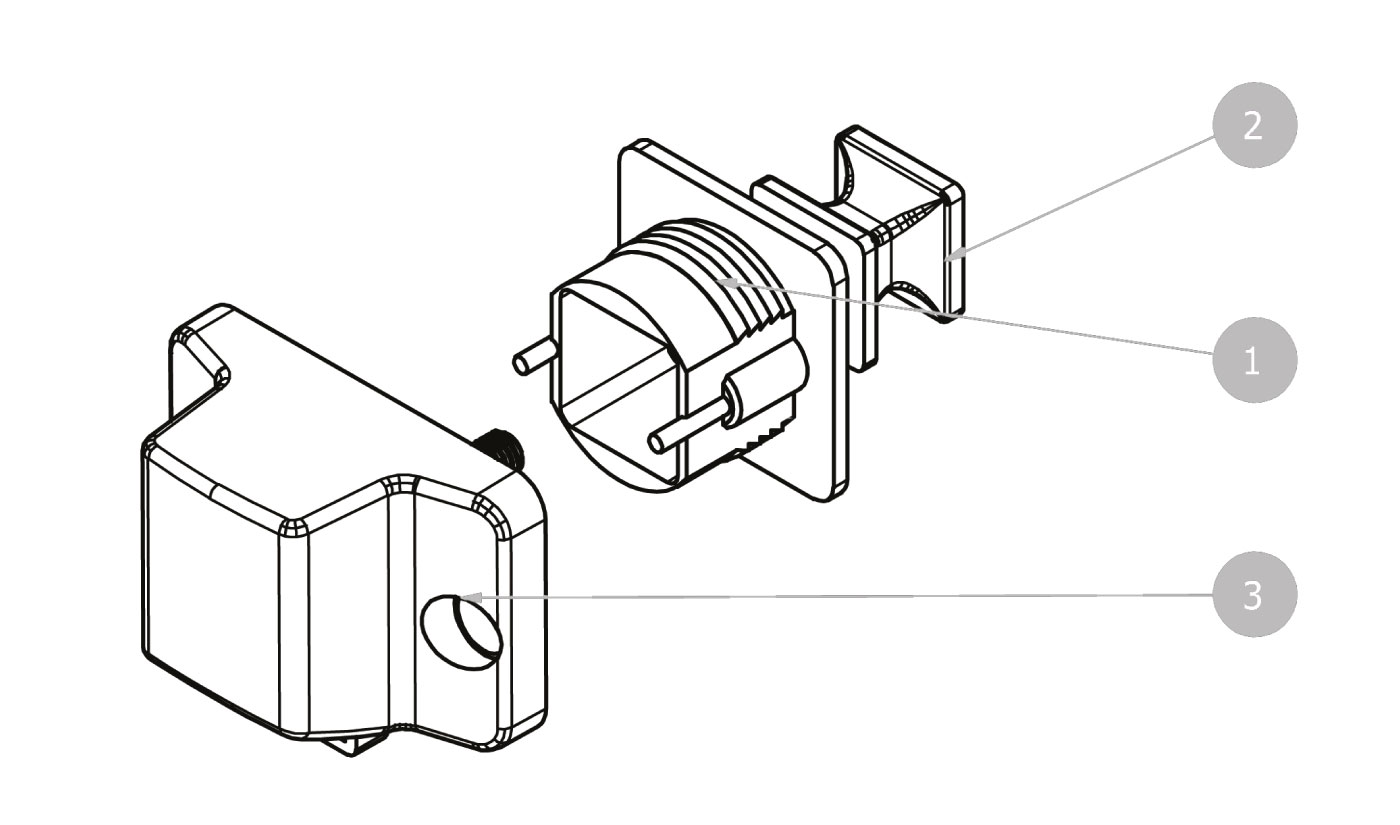

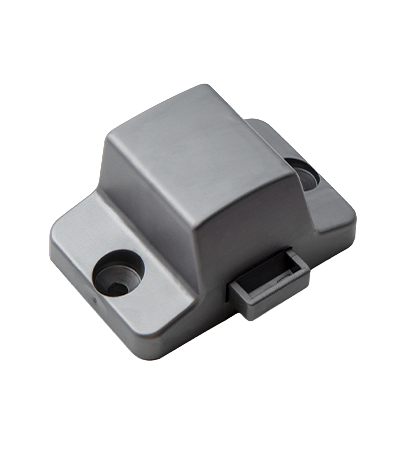

Assembly instructions: make a 30mm. hole on the door. Put the latch and fix to the back side of the door with the screws. screw the push button to the latch until you reach the ideal position, after put the frame into the hole.
